Faital Pro HF200-8 2-inch High Frequency Compression Driver 8-Ohms Professional Audio Applications Titanium Diaphragm 70-Watt Rms 140-Watt Max
5.0 (136 items)
Limited Time Sale$154.24 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212339822 | Release Date | 2026/04/06 | List Price | $102.83 | Model Number | 212339822 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

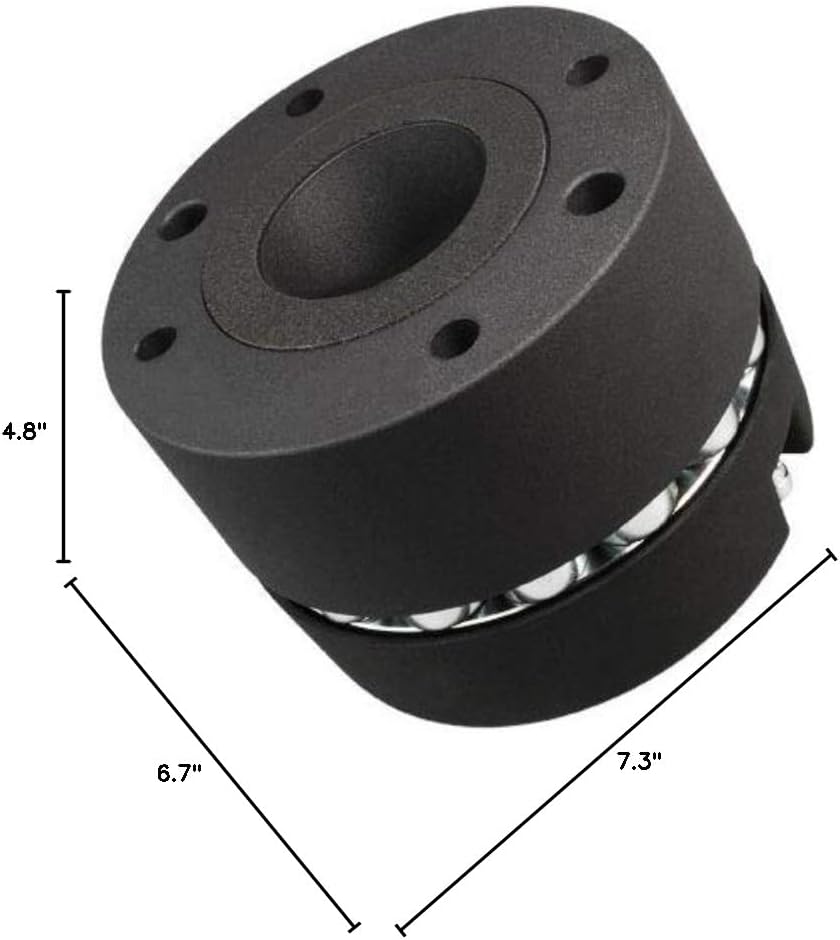

FAITAL PRO HF200-8 2-inch High Frequency Compression Driver 8-Ohms Professional Audio Applications Titanium Diaphragm 70-Watt Rms 140-Watt Max || The FAITAL PRO HF200-8 is a high-frequency compression driver that boasts impressive specifications for professional audio applications. It features a titanium diaphragm and a neodymium magnet, ensuring high performance and reliability. || NOMINAL SPECIFICATIONS || Throat Diameter : 50.8 mm (2 in) || Overall Diameter : 130.5 mm (5.14 in) || 90° Mounting Holes Diameter (4xM6) : 102 mm (4.02 in) || Depth : 95 mm (3.74 in) || Net Weight : 3.2 kg (7.1 lb) || Shipping Box (Single carton box) : 185 x 170 x 122 mm (7.3 x 6.7 x 4.8 in) || Shipping Weight : 3.4 kg (7.5 lb) || || TECHNICAL PARAMETERS || Nominal Impedance : 8 Ohm || Minimum Impedance : 5.8 Ohm || AES Power above 0.9 kHz (1) : 70 W || AES Power above 0.65 kHz : 50 W || Maximum Power above 0.9 kHz (2) : 140 W || Maximum Power above 0.65 kHz : 100 W || Minimum Crossover Frequency (3) : 0.9 kHz || Sensitivity (1W/1m) (4) : 109 dB || Frequency Range : 0.5÷18 kHz || Voice Coil Diameter : 74 mm (2.91 in) || Winding Material : Al || Former Material : Kapton || || TECHNICAL PARAMETERS || Diaphragm Material : Titanium || Diaphragm Shape : Dome || Winding Depth : 2.35 mm (0.09 in) || Magnetic Gap Depth : 2.8 mm (0.11 in) || Flux Density : 1.8 T || Magnet : Neodymium Slug Crown || Re : 5.6 Ohm || Phase Plug Design : Annular || Exit Angle (5) : 24° Conical || NET Air Volume filled by HF Driver : 1.10 dm^3 (0.039 ft^3) || || Brand : FAITAL PRO || Model Number : HF200-8 | HF200 || UPC : 810130951505 || PART NUMBER (P/N) : || Push Terminals - 8 Ohm Version : 00743961 || || NOTES || Driver mounted on a 2” 90° x 40° Horn || (1) 2 Hours Test According to AES 2-1984 Rev. 2003 || (2) Maximum power is defined as 3dB greater than nominal power || (3) 12 dB/oct or higher slope high-pass filter || (4) Averaged within the frequency range || (5) The phase plug is recessed from the driver's exit which is at the end of a conical adaptation horn "
- "NOMINAL SPECIFICATIONS || Throat Diameter : 50.8 mm (2 in) || Overall Diameter : 130.5 mm (5.14 in) || 90° Mounting Holes Diameter (4xM6) : 102 mm (4.02 in) || Depth : 95 mm (3.74 in) || Net Weight : 3.2 kg (7.1 lb) || Shipping Box (Single carton box) : 185 x 170 x 122 mm (7.3 x 6.7 x 4.8 in) || Shipping Weight : 3.4 kg (7.5 lb) || "
- "TECHNICAL PARAMETERS || Nominal Impedance : 8 Ohm || Minimum Impedance : 5.8 Ohm || AES Power above 0.9 kHz (1) : 70 W || AES Power above 0.65 kHz : 50 W || Maximum Power above 0.9 kHz (2) : 140 W || Maximum Power above 0.65 kHz : 100 W || Minimum Crossover Frequency (3) : 0.9 kHz || Sensitivity (1W/1m) (4) : 109 dB || Frequency Range : 0.5÷18 kHz || Voice Coil Diameter : 74 mm (2.91 in) || Winding Material : Al || Former Material : Kapton || "
- "TECHNICAL PARAMETERS || Diaphragm Material : Titanium || Diaphragm Shape : Dome || Winding Depth : 2.35 mm (0.09 in) || Magnetic Gap Depth : 2.8 mm (0.11 in) || Flux Density : 1.8 T || Magnet : Neodymium Slug Crown || Re : 5.6 Ohm || Phase Plug Design : Annular || Exit Angle (5) : 24° Conical || NET Air Volume filled by HF Driver : 1.10 dm^3 (0.039 ft^3) || "
- "Brand : FAITAL PRO || Model Number : HF200-8 | HF200 || UPC : 810130951505 || PART NUMBER (P/N) : || Push Terminals - 8 Ohm Version : 00743961 || The FAITAL PRO HF200-8 is a high-frequency compression driver that boasts impressive specifications for professional audio applications. It features a titanium diaphragm and a neodymium magnet, ensuring high performance and reliability. || "
- "NOTES || Driver mounted on a 2” 90° x 40° Horn || (1) 2 Hours Test According to AES 2-1984 Rev. 2003 || (2) Maximum power is defined as 3dB greater than nominal power || (3) 12 dB/oct or higher slope high-pass filter || (4) Averaged within the frequency range || (5) The phase plug is recessed from the driver's exit which is at the end of a conical adaptation horn "
| UPC | 810130951505 |
|---|---|
| Brand | Faital Pro |
| Impedance | 8 Ohms |
| Model Name | HF200-8 |
| Unit Count | 1.0 Count |
| Item Weight | 7.1 Pounds |
| Manufacturer | FAITAL PRO |
| Model Number | HF200-8 |
| Power Source | Corded Electric |
| Speaker Size | 2 Inches |
| Speaker Type | Woofer |
| BuiltIn Media | FAITAL PRO HF200-8 2-inch High Frequency Compression Driver |
| Is Waterproof | FALSE |
| Mounting Type | Flush Mount |
| Controller Type | Button |
| Number of Items | 1 |
| Antenna Location | For Surround Sound Systems |
| Audio Driver Type | Dynamic Driver |
| Audio Output Mode | Surround |
| Compatible Devices | Desktop |
| Additional Features | Bass Boost |
| Connectivity Protocol | Coaxial |
| Water Resistance Level | Not Water Resistant |
| Connectivity Technology | Coaxial |
| Number of Audio Channels | 2.0 |
| Item Dimensions D x W x H | 7.3"D x 4.8"W x 6.7"H |
| Specific Uses For Product | Home Theater / Surround Sound Systems |
| Speaker Maximum Output Power | 140 Watts |
